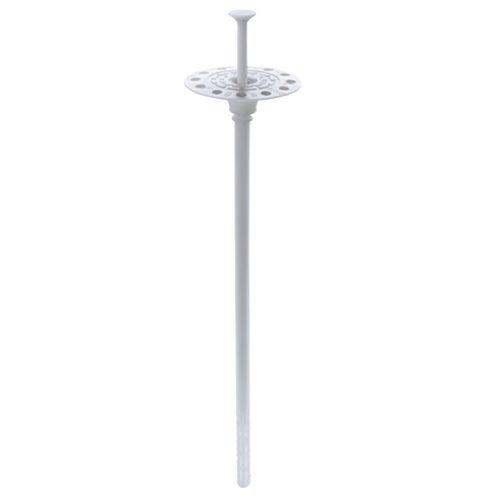

Description
Properties
- Approved for concrete, solid and perforated masonry
- Precise installation
- Flexible anchor washer ensures optimum positioning in the insulation board where there are angled drill boreholes
- Plastic injection element to reduce thermal transmission
- Short embedment depth, reduced drilling
- Minimised risk of breaking nails due to fibre-reinforced composites
- Premounted nail for quick installation
Areas of Application
- Externally and internally
Dimensions & Coverage
- Drill hole diameter : 8mm
- Washer diameter : 60mm
- Lengths : from 75mm to 175mm (boxes of 200)
- Allow 35mm embedded in substrate for secure fixing
Technical
Drill hole depth for washer
≥ 35 mm (55 mm)
Embedment depth of nail
≥ 25 mm (45 mm)
Point thermal transmission
0.001 W/K
European Technical Assessment
ETA-11/0192
