Description
Properties
- High resistance to moisture and frost.
- High flexural strength.
- High compressive strength.
- Low environmental impact.
- PEFC certified timber from sustainably managed forests.
- Wide range of panel sizes and thickness.
Areas of Application
- External -

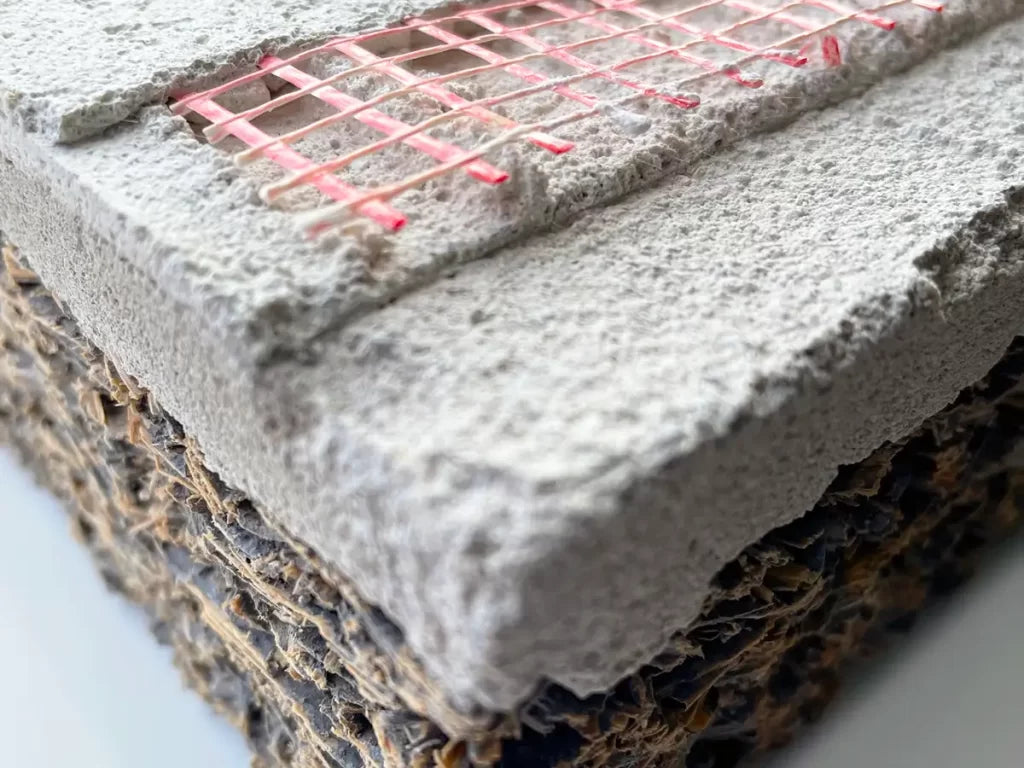

: Wall (as cladding of timber frame walls, and subsequently rendered in conjunction with a stabilising glass fibre mesh)
- Internal -
: Wall & ceiling (as lining of timber frame walls or formation of internal partition walls, and subsequently plastered in conjunction with a stabilising glass fibre mesh)
Dimensions & Coverage
- 15mm x 1200 x 600 (0.72m²)
- 15mm x 2000 x 600 (1.2m²)
- 15mm x 2400 x 600 (1.44m²)
- 25mm x 1200 x 600 (0.72m²)
- 25mm x 2000 x 600 (1.2m²)
- 25mm x 2400 x 600 (1.44m²)
- 35mm x 2000 x 600 (1.2m²)
- 50mm x 2000 x 600 (1.2m²)
Technical
Based on 15mm board
Based on 15mm board
Average weight
8kg/m2
Thermal resistance at 10 °C
0.2m2K/W
Thermal Conductivity λD
0.065W/m2K
Average resistance to flexion
3.51N/mm2
Average resistance to compression by pressing 10%
0.2N/mm2
Reaction to fire
B1 class
Resistance to vapour
4 to 6μ
Resistance to water and frost (20 cycles frost/defrost)
no alternation
Temperature limit for use
200°C
Capacity of absorption of room humidity
2 to 3.5lt/m2
Specific heat
2.1kJ/kgK
Capacity for thermal accumulation
1119 to 726kJ/m3K
Linear dilatation thermal coefficient
0.01mm/mK
Resistance to traction perpendicular to the face
0.05N/mm2
Resistance to cutting
0.28N/mm2
Adhesion to concrete
0.05N/mm2
Resistance to mould and fungus attack
Inhibition
Downloads
Savolit_brochure_2025_compressed.pdf
